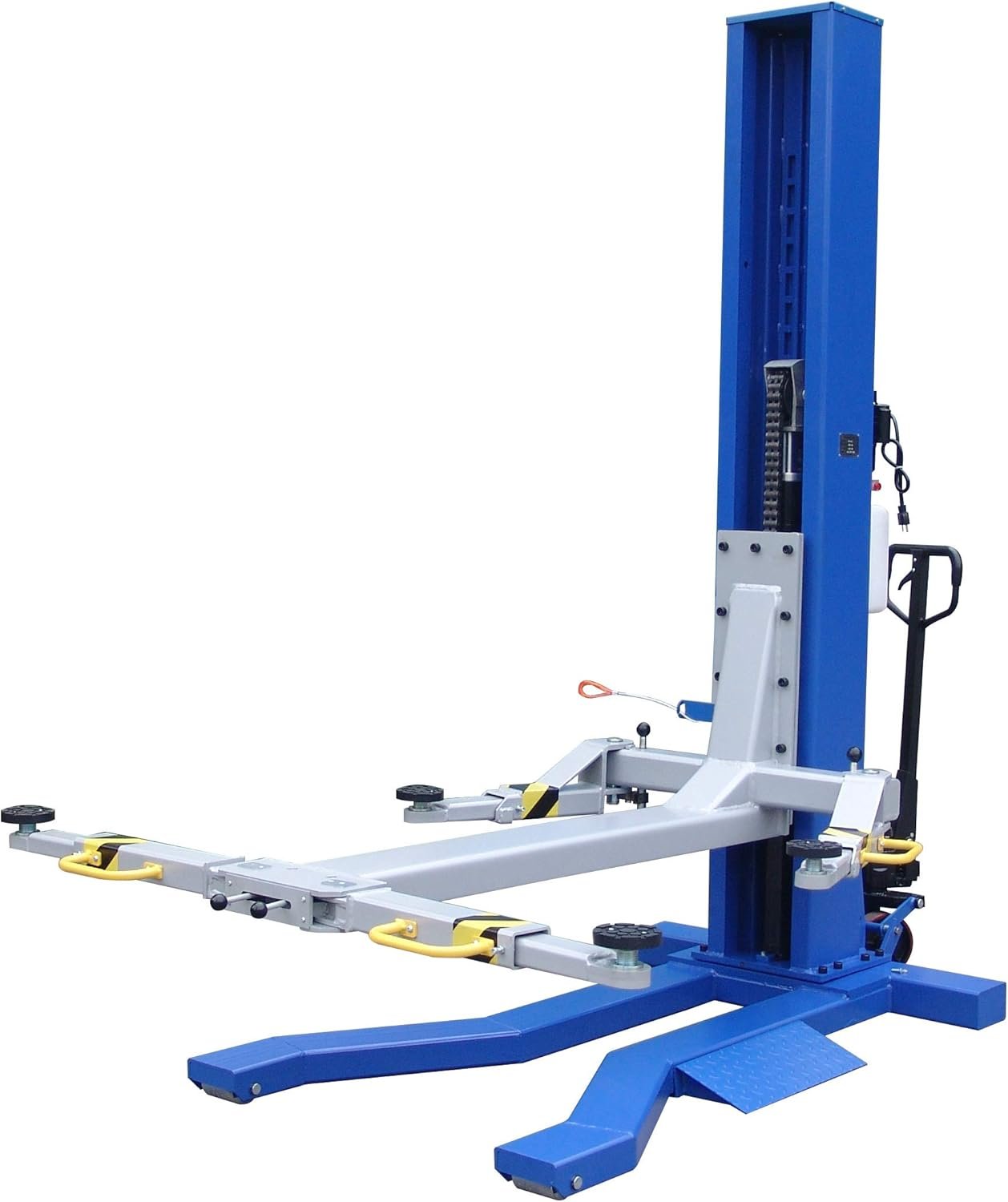

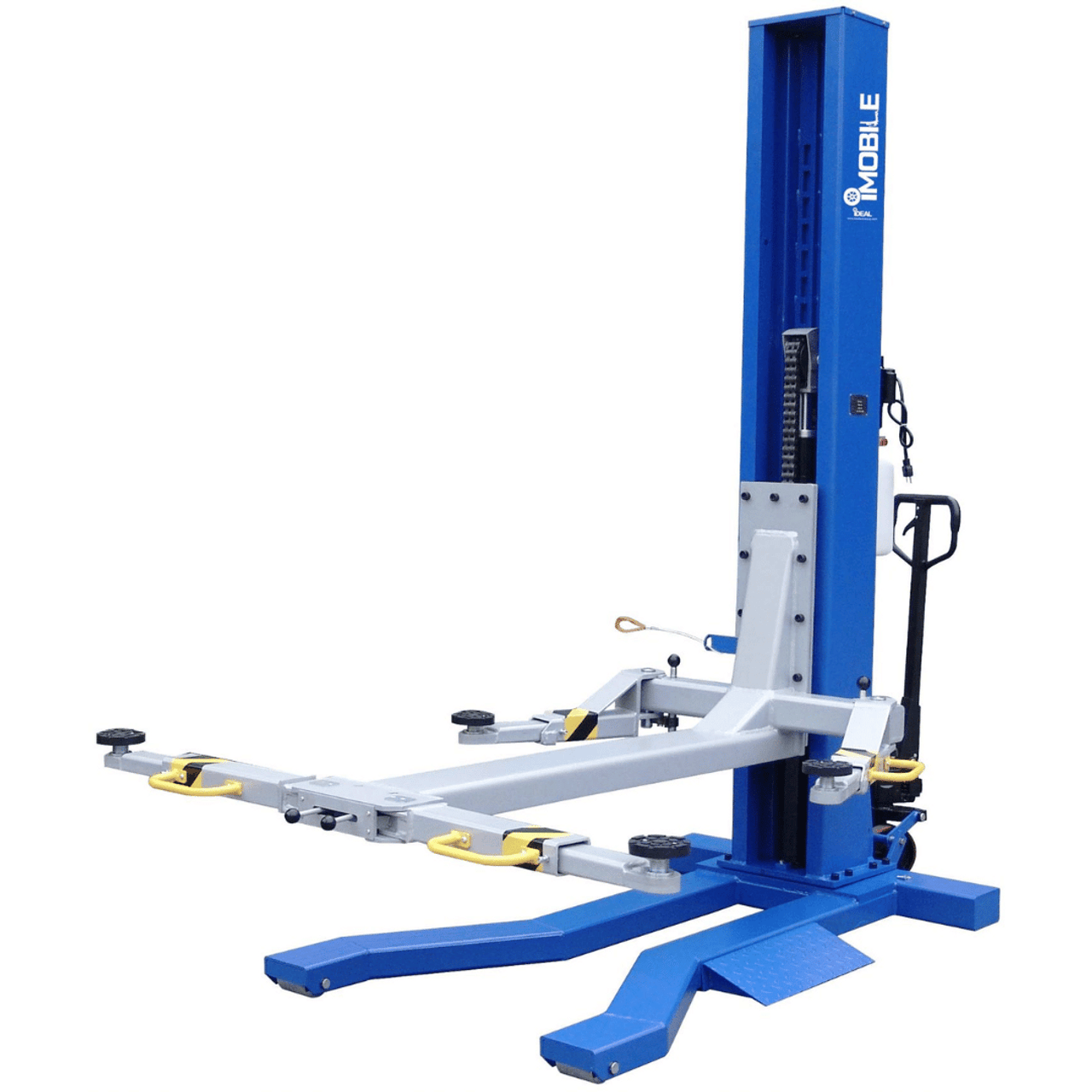

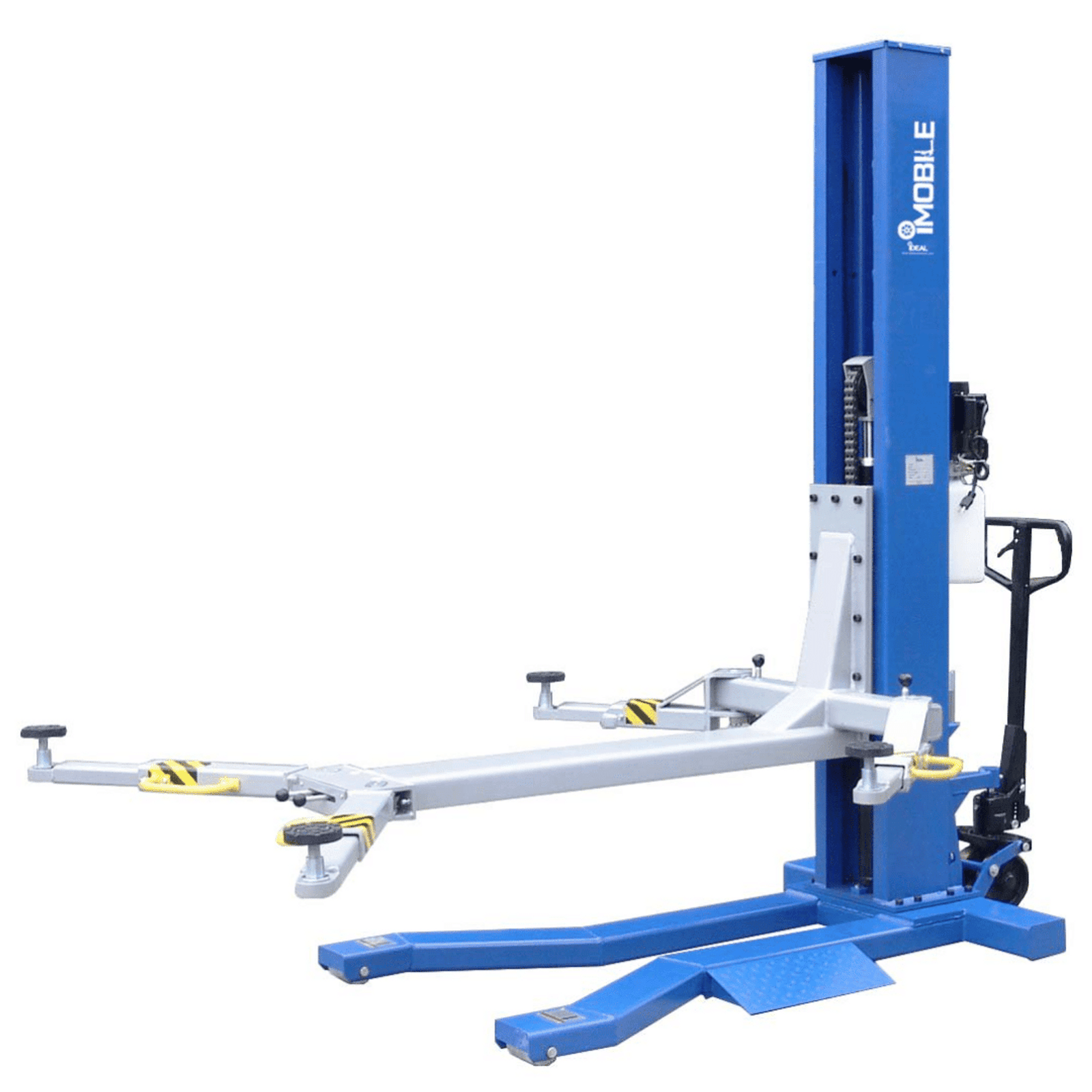

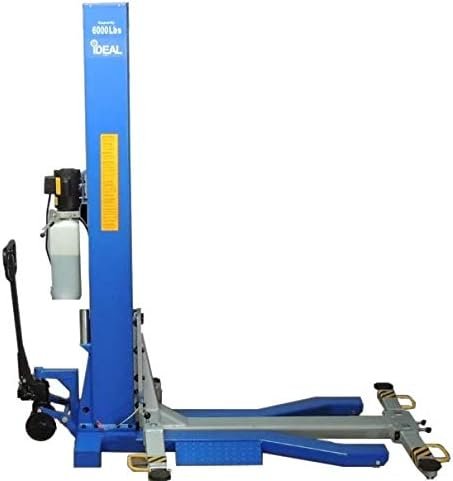

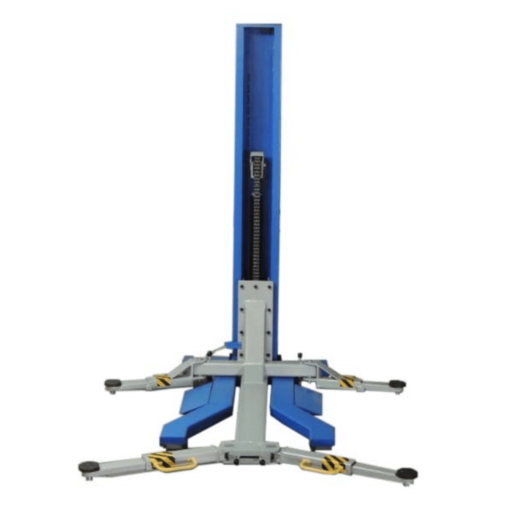

Mobile Single Post Lift with 6,000 lbs Capacity, Low Profile Design

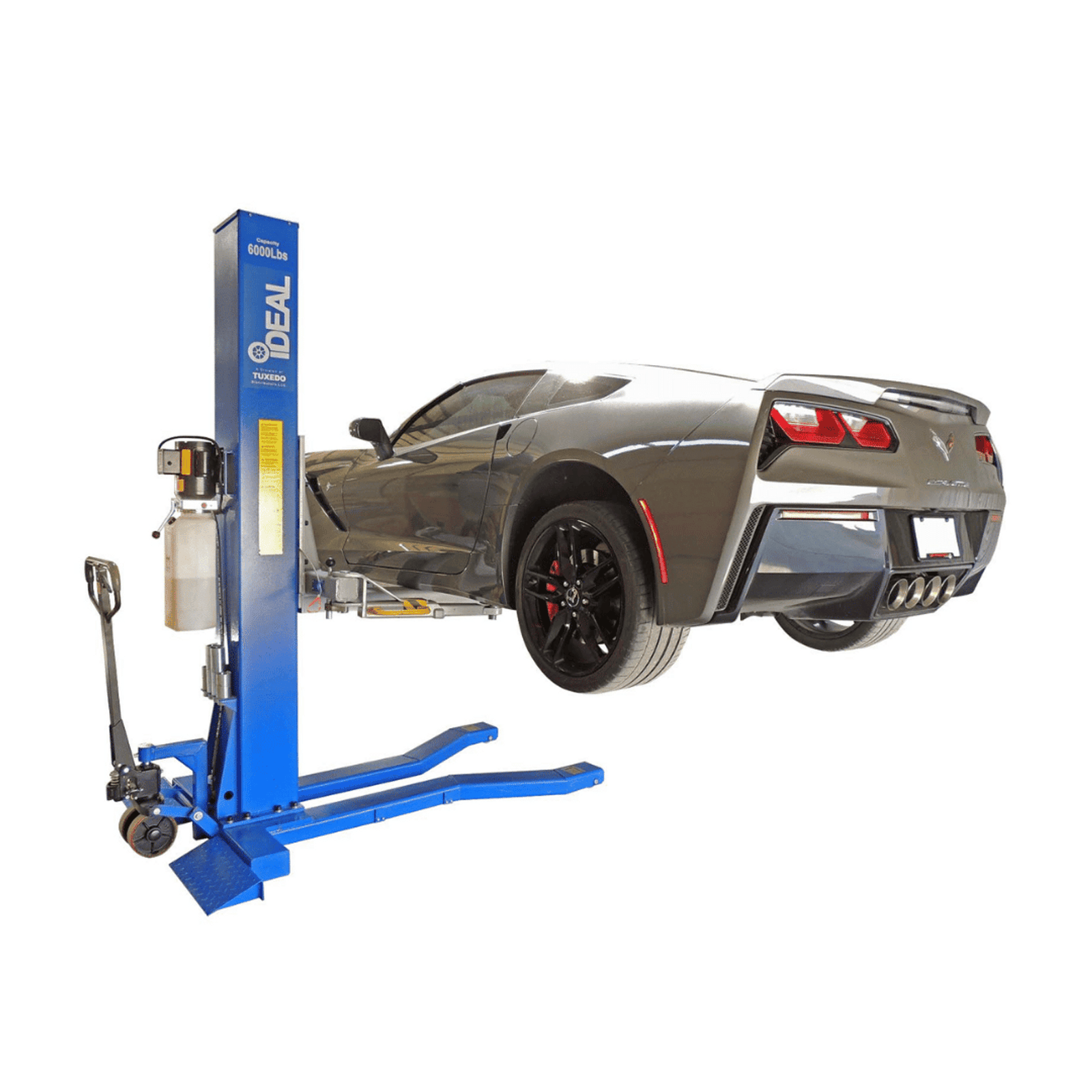

This mobile single post lift is ideal for spaces with limited room and situations where portability is essential. Its low-profile design, coupled with drive-over ramps, allows for easy vehicle loading, while the pallet jack mechanism enables mobility for use in various locations. With a lifting capacity of 6,000 lbs, this lift is suitable for service bays, garages, or outdoor areas with flat concrete surfaces. The 72” lifting height ensures access to a vehicle’s underside, making it perfect for pre-service inspections and maintenance. The lift’s design also supports wheel service on most vehicles, offering versatility for homeowners and automotive shops looking to optimize space and workflow.

Specifications:

• Capacity: 6,000 lbs
• Overall Width: 45 3/16″
• Overall Height: 102 3/8″
• Overall Length: 101 9/16″
• Minimum Ceiling Height: 9′
• Swivel Pad Height (Adjustable): 3 15/16″ – 6 5/16″

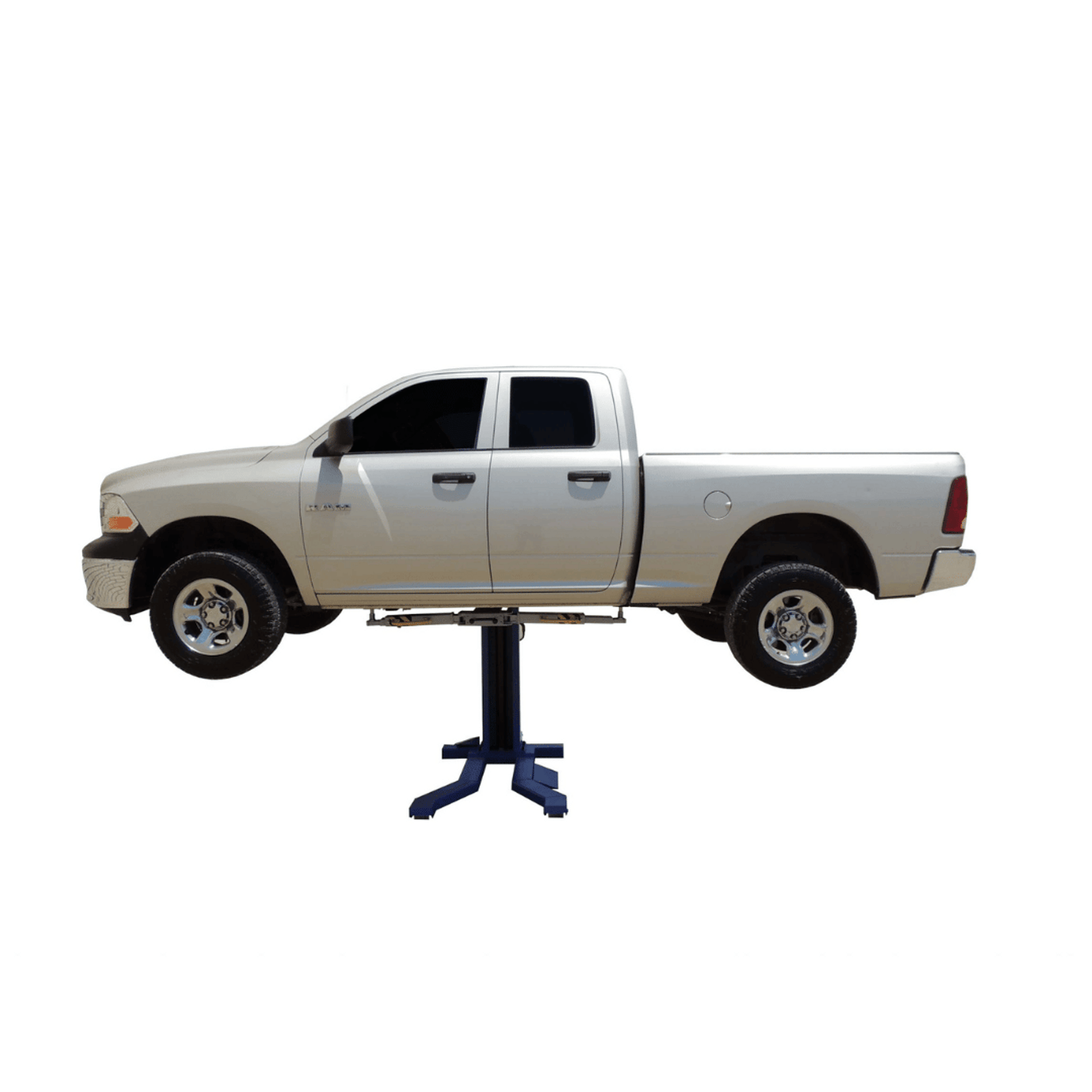

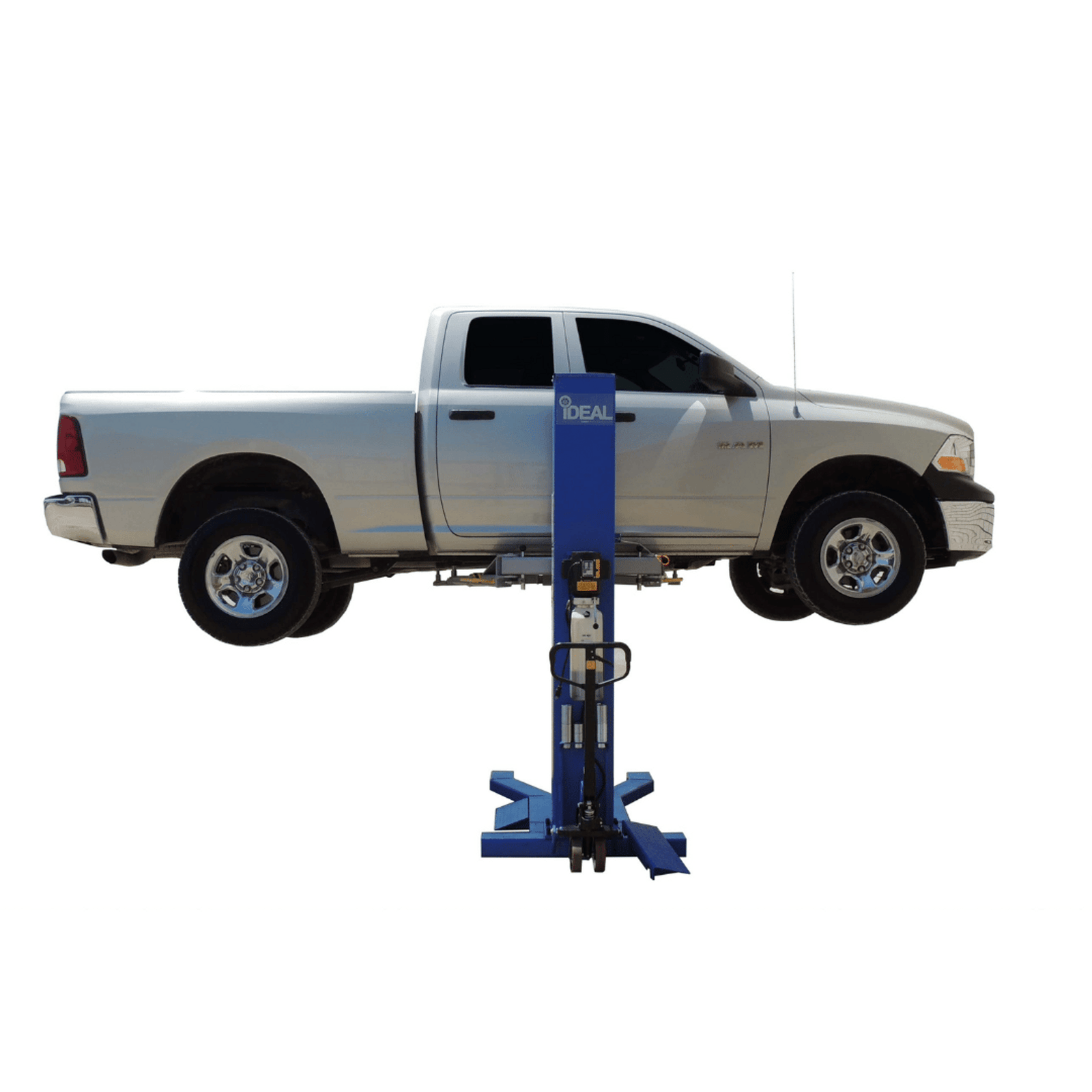

• Max Lift Height: 72″
• Drive-Over Height: 3 15/16″
• Main Side Arm Reach: 19 11/16″ – 26″
• Off-Side Arm Reach: 24 5/8″ – 34″
• Electric Power Unit: 2.5HP / 115VAC / 1PH
• Shipping Weight: 1,850 lbs

Features:

• 6,000 lb capacity for a wide range of vehicles.
• Low-profile design under 4″ for efficient loading.

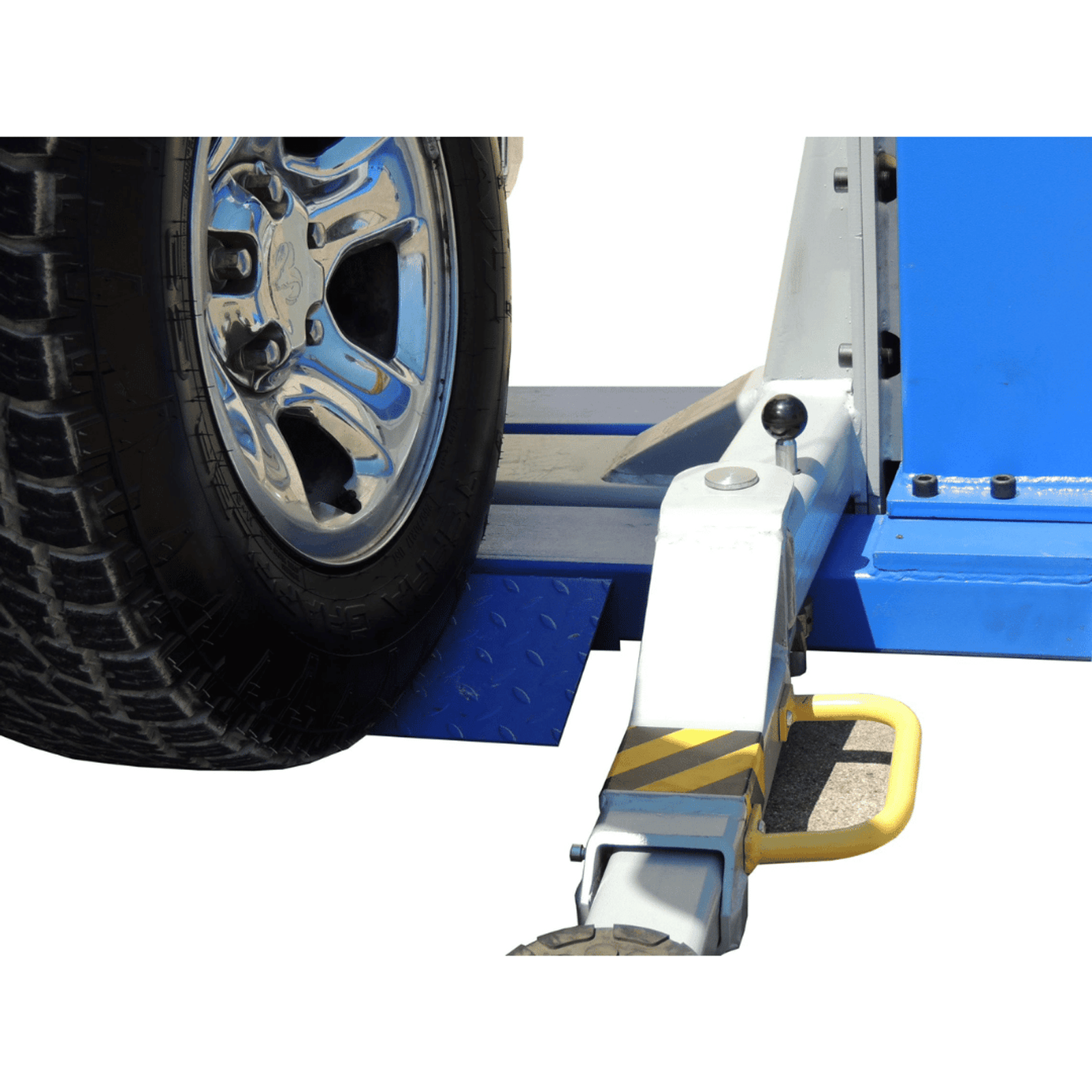

• Drive-over ramps for easy vehicle positioning.
• Portable with a pallet jack mechanism for flexibility.
• Rigid base construction for stability and safety.
• Single-point lock release for secure lifting.

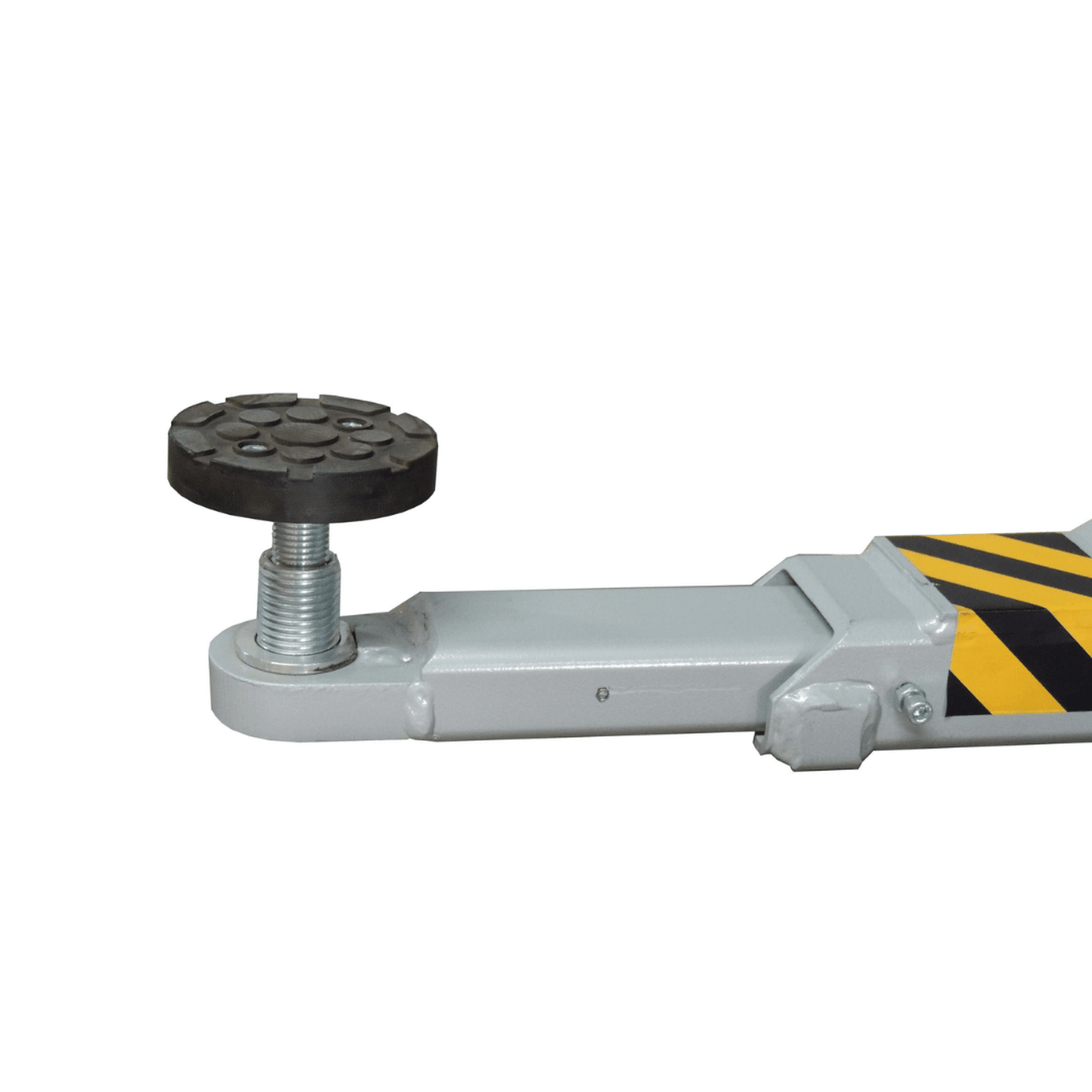

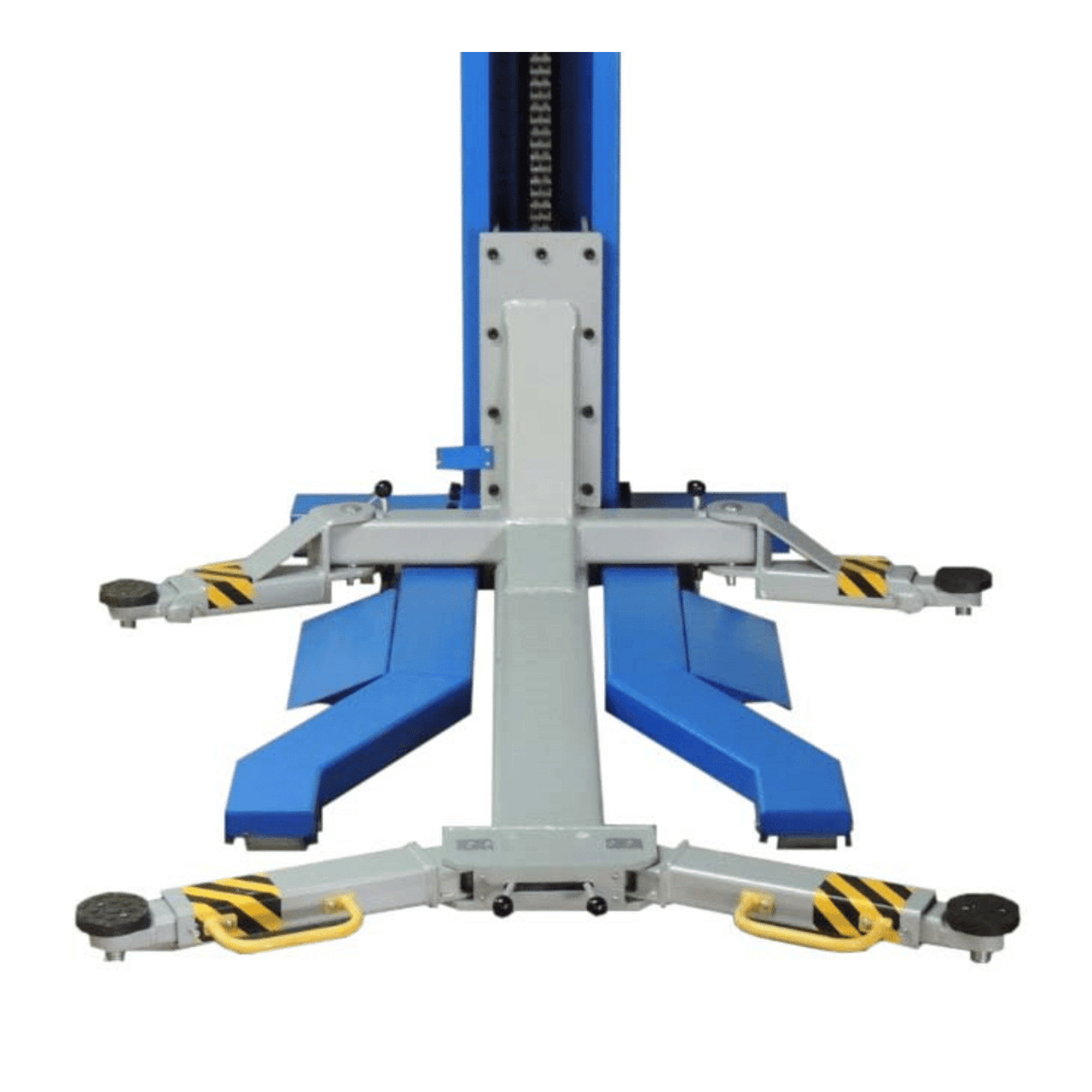

• Telescoping two-stage swing arms for versatile vehicle fitment.

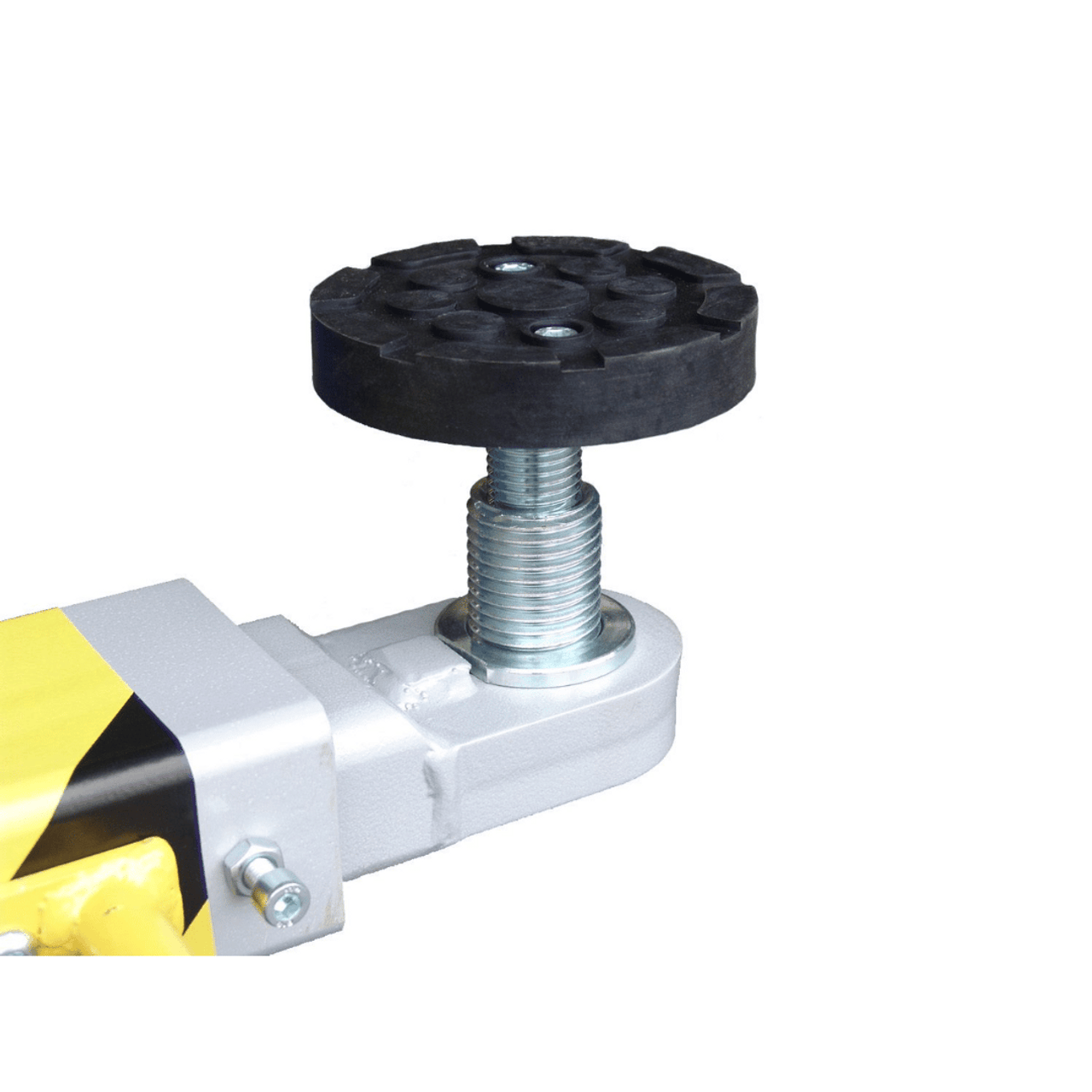

• Telescoping screw pads for quick adjustments.
• Stackable pad extensions (4 pieces of 2″ and 4 pieces of 4″) included.
• Heavy-duty arm restraints for additional security.
• 21 locking positions for precise lift control.
• Durable powder-coated finish for long-lasting protection.
• Limited warranty: 5-year structural / 1-year parts coverage.
